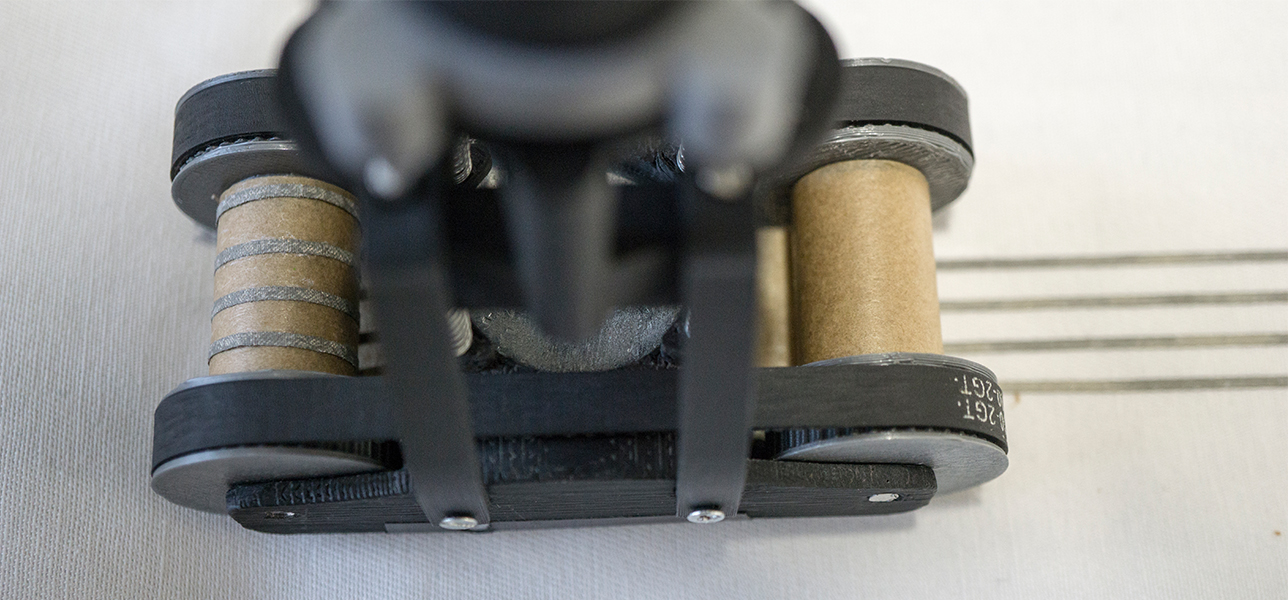

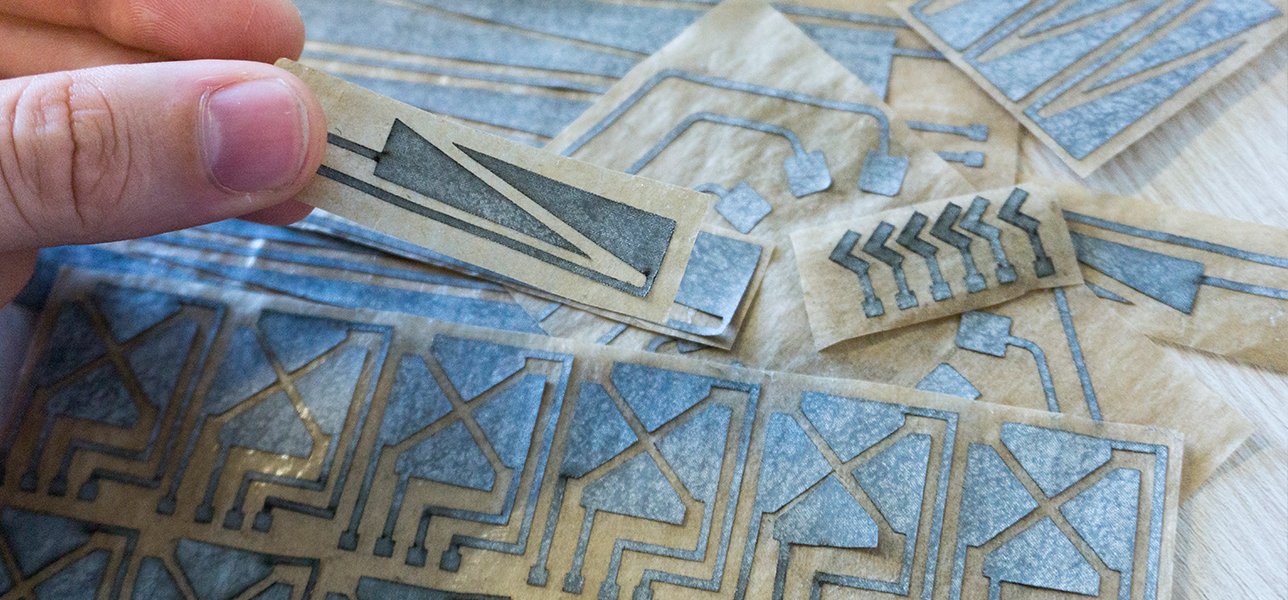

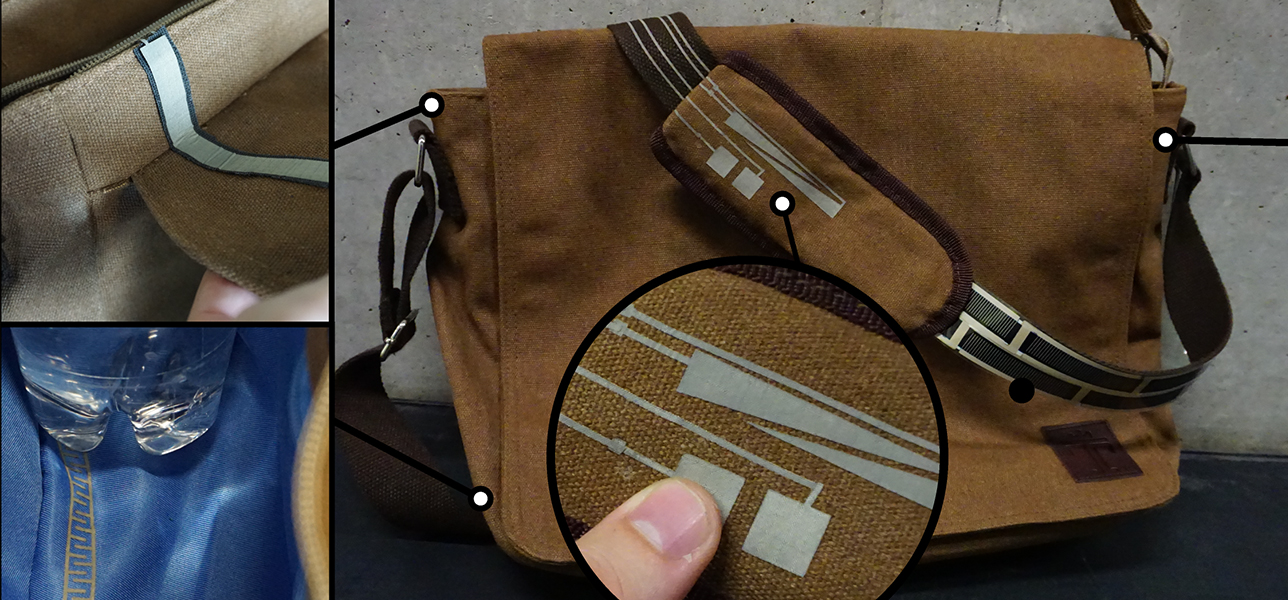

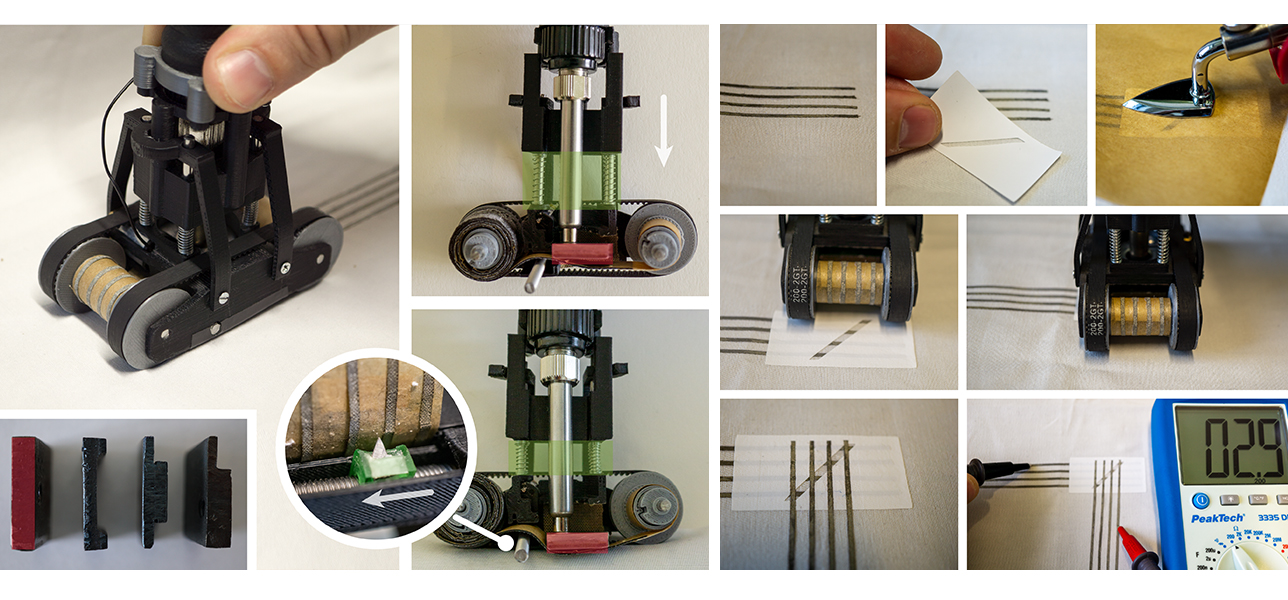

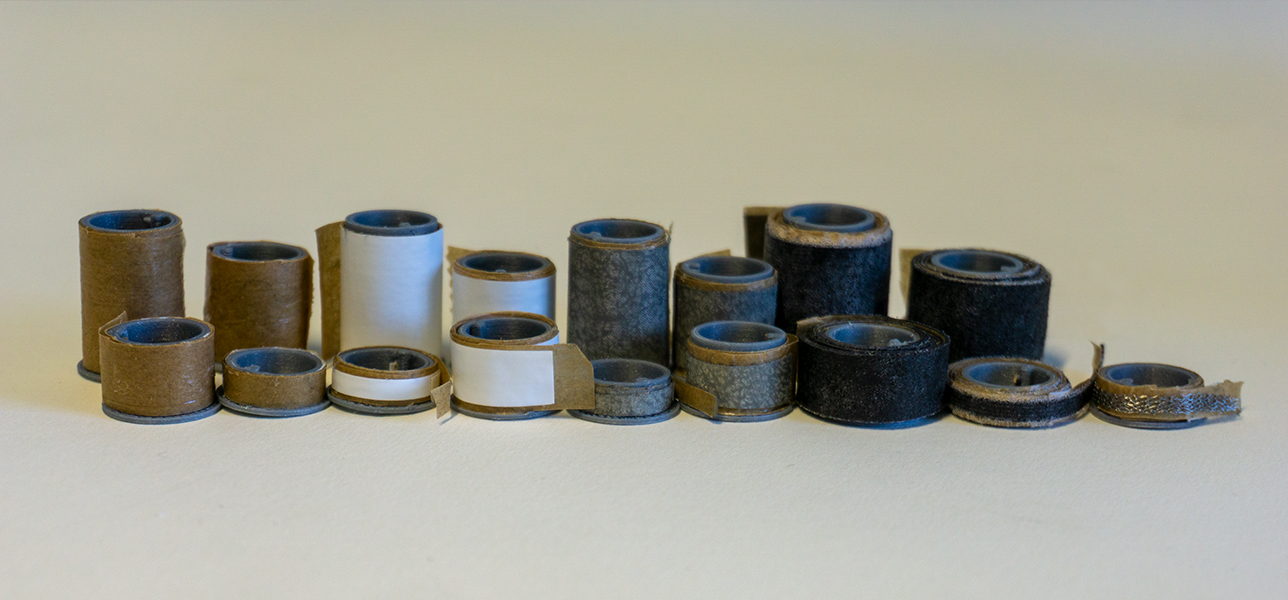

Rapid prototyping of interactive textiles is still challenging, since manual skills, several processing steps, and expert knowledge are involved. We present Rapid Iron-On User Interfaces, a novel fabrication approach for empowering designers and makers to enhance fabrics with interactive functionalities. It builds on heat-activated adhesive materials consisting of smart textiles and printed electronics, which can be flexibly ironed onto the fabric to create custom interface functionality. To support rapid fabrication in a sketching-like fashion, we developed a handheld dispenser tool for directly applying continuous functional tapes of desired length as well as discrete patches. We introduce versatile compositions techniques that allow to create complex circuits, utilize commodity textile accessories and sketch custom-shaped I/O modules. We further contribute a comprehensive library of components for input, output, wiring and computing. Three example applications, results from technical experiments as well as expert interviews demonstrate the functionality, versatility and potential of this approach.
Hands-on Fabrication of Interactive Textile Prototypes
|Wearables and eTextiles
|Prof. Raimund Dachselt,
Prof. Jürgen Steimle
|Watch on YouTube
|Smart Textiles & Accessories Mechanical Engineering Ironing Rapid Prototyping 3D-Printing Arduino C Capactive & Resistive Sensing
Presentation at ACM CHI 2020
Virtual CHI Fab Event (due to COVID-19)
received honorable mention award.
See recorded talk on YouTube.
Further presentationsInvited Talk at ACM ISS '20.
"A novel fabrication technique for enhancing fabrics with interactive functionalities"
Online Article 15.02.2020
